High precision Torsion bar Synchronous NC Press Brake KCN-4025

  • 1 - 2 Sets
    $5,400.00
  • >=3 Sets
    $4,800.00
Nominal Pressure (kN):
400
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$5,400.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Slider Stroke (mm):
100 mm mm
Automatic Level:
Fully Automatic
Nominal Pressure (kN):
400 kN
Throat Depth (mm):
220 mm mm
Machine Type:
Torsion Bar
Length of Working Table (mm):
2500 mm
Width of Working Table (mm):
200 mm mm
Condition:
New
Place of Origin:
China
Brand Name:
KingBall
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation:
Automatic
Extra Services:
Machining
Certification:
ce
Year:
2020
Weight (KG):
3500
Motor Power (kw):
5.5 kw
Key Selling Points:
Easy to Operate
Warranty:
2 years
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Local Service Location:
Egypt, Italy, Germany, Saudi Arabia, India, Russia, South Africa
Showroom Location:
Egypt, Italy, Saudi Arabia, India, Russia, South Africa
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor
Color:
Optional
Control system:
E21S
Seal Ring:
NOK
Open Height:
360Mm
Voltage:
220V/380V/415V/440V/customized
Dimension:
2800*1450*2000mm
Item:
Press Brake Bending Marchine
Main motor:
Siemens Germany
Hydraulic system:
Boschrexroth
Gear Pump:
Sunny
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Press Brake is packaged by plastic,toolings are packaged by wooden
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

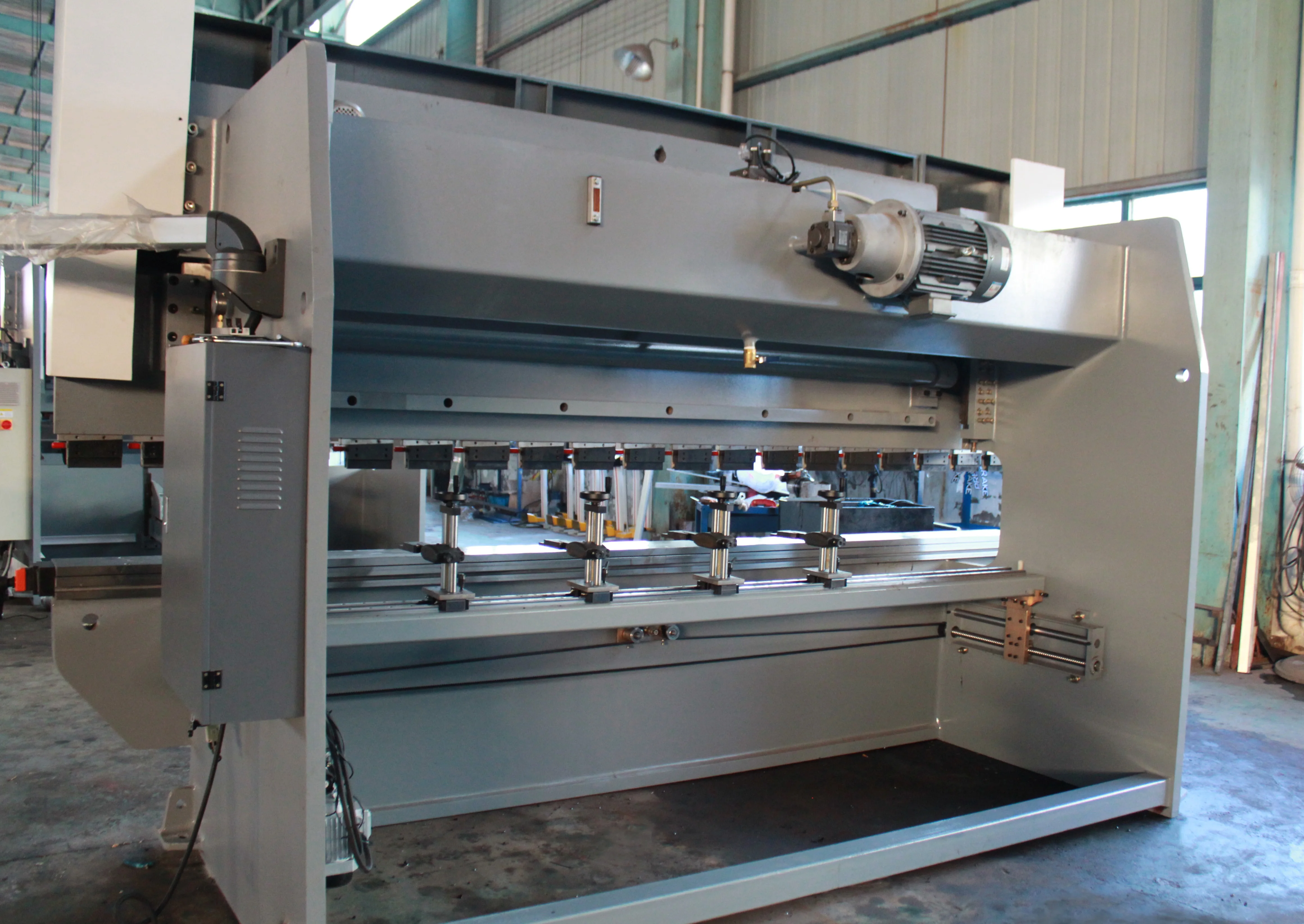

Torsion bar Synchronous NC Press Brake

Model: KCN-4025



2 Axis CNC Control(X, Y,)

X: Backgauge front and back;      Y: Ram stroke

W: Worktable crowning (optional)

Main functions and features

  • 1.Overall welded and processed structure.
  • 2.High mechanical strength and strong rigidity.
  • 3.Ram stroke hydraulic approaching downward, stable and reliable.
  • 4.E21 can control the movement of ram stroke and backgauge, achieving efficient and highly precise positioning.
  • 5.Wedge compensation on top punch clamping.
  • 6.Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
  • 7.2 Sliding front sheet support arms mounted onto T slot of the bed.
  • 8.Solid one block four face multi V die.
  • 9.Approved stable and reliable hydraulics.
  • 10.Stop fingers with milscale for plate bending machine.

Technical Parameters


No.
Item
Parameter
Unit
1
Nominal pressure
400
KN
2
Table length
2500
mm
3
Max.Slider stroke
100
mm
4
Max.Shut height
360
mm
5
Between columns
2100
mm
6
Throat depth
230
mm
7
Main motor power
5.5
KW
8
Down Speed
110
mm/s
9
Pressing Speed
10
mm/s
10
Return Speed
100
mm/s
11
Control axis
X+Y
/
12
X axis Stroke
500
mm
16
Backgauge Stoppers
2
/
17
Overall dimension
L   2800
mm
W  1450
mm
H  2000
mm
18
Machine weight
3500
KG
Detailed Images

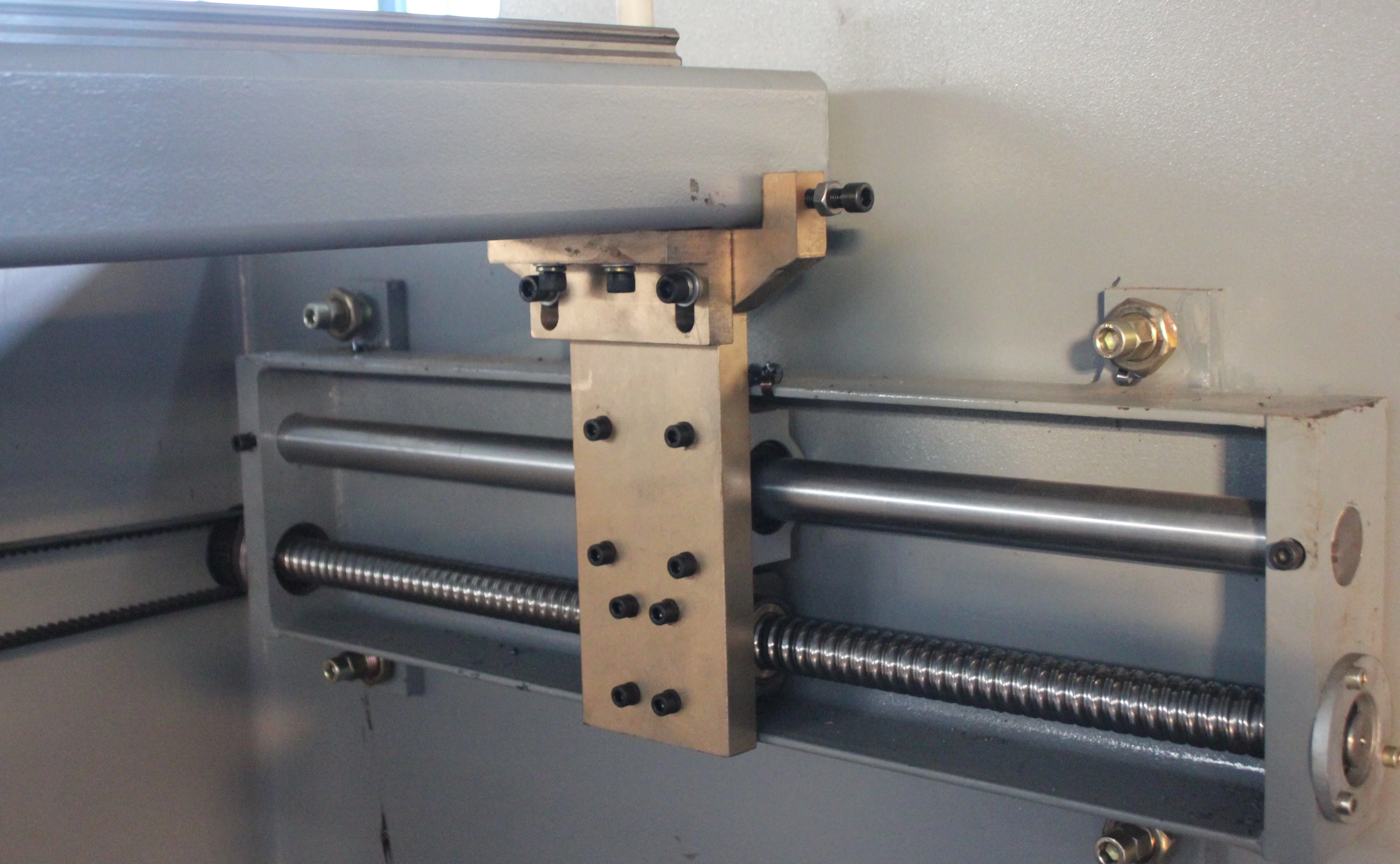

Backgauge with ball screw and round guide

Multifunction adjustment of the tightening wheel.

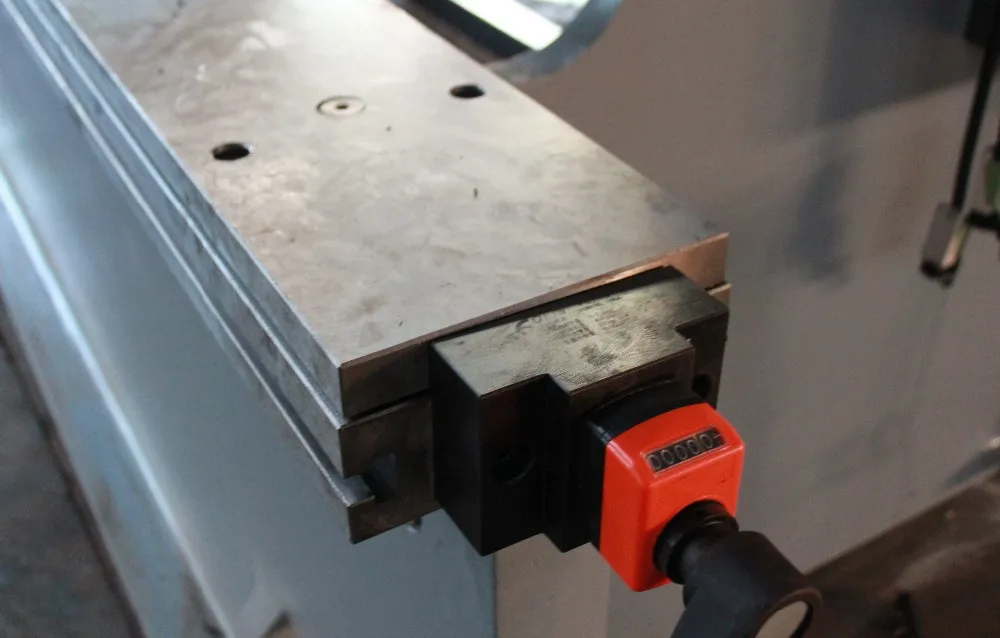

Manual table crowning(optional)

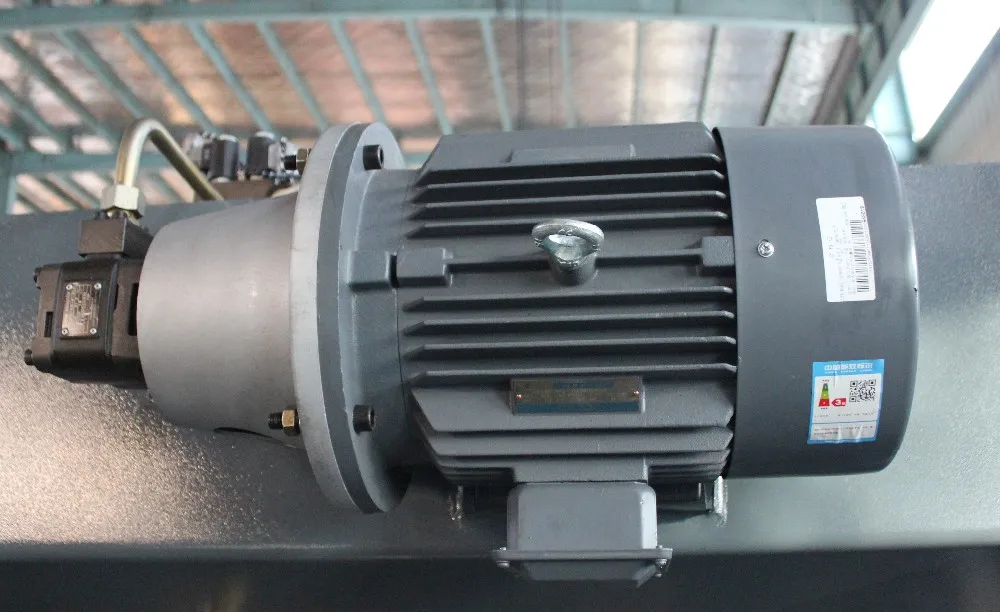

Siemens main motor German brand.

Sunny pump USA brand.
Rexroth valve German brand.

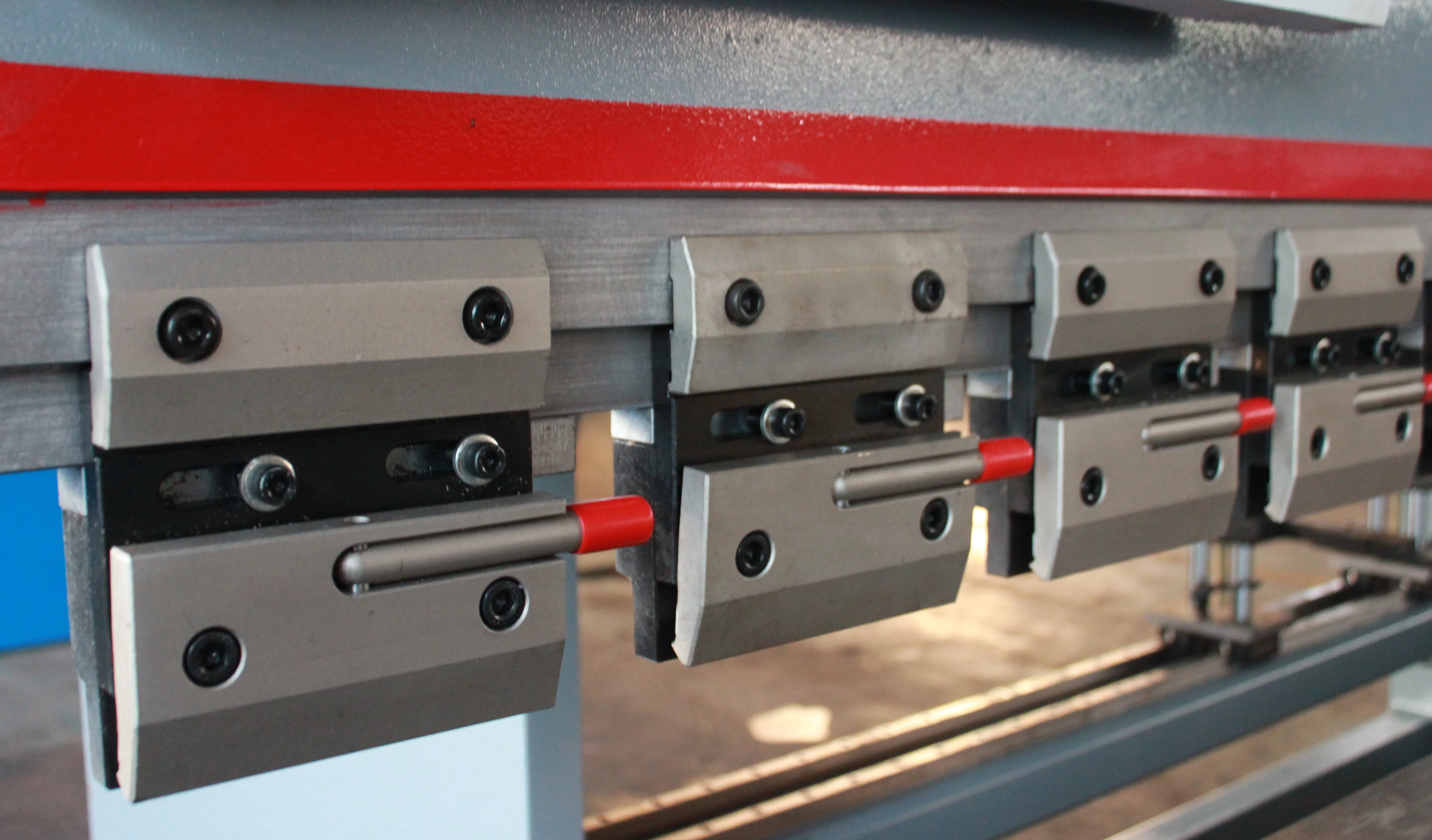

European style quick release clamping

The guideway use the brass, wear-resisting, long service life.

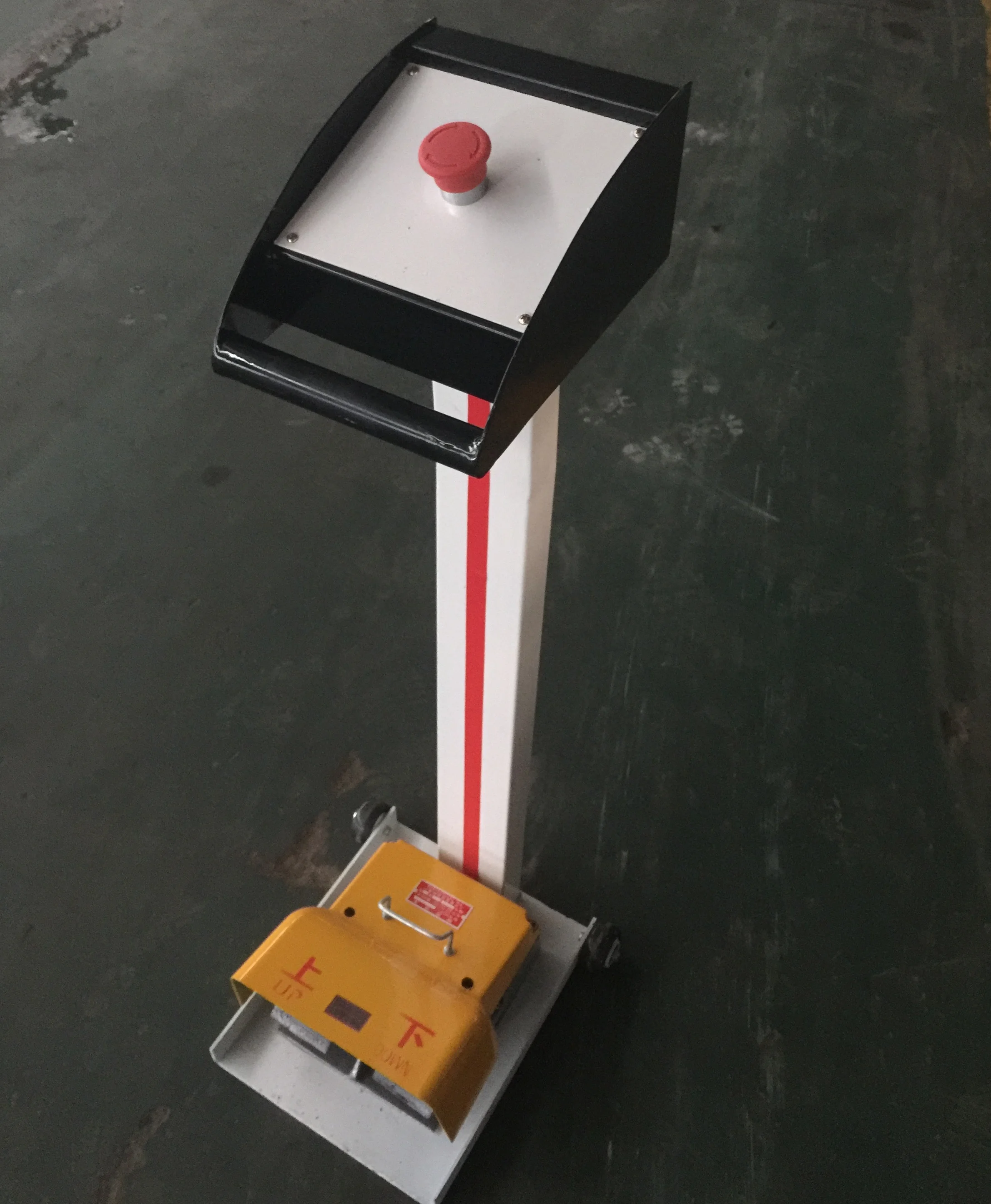

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization.

The connector use wear - resistant brass.

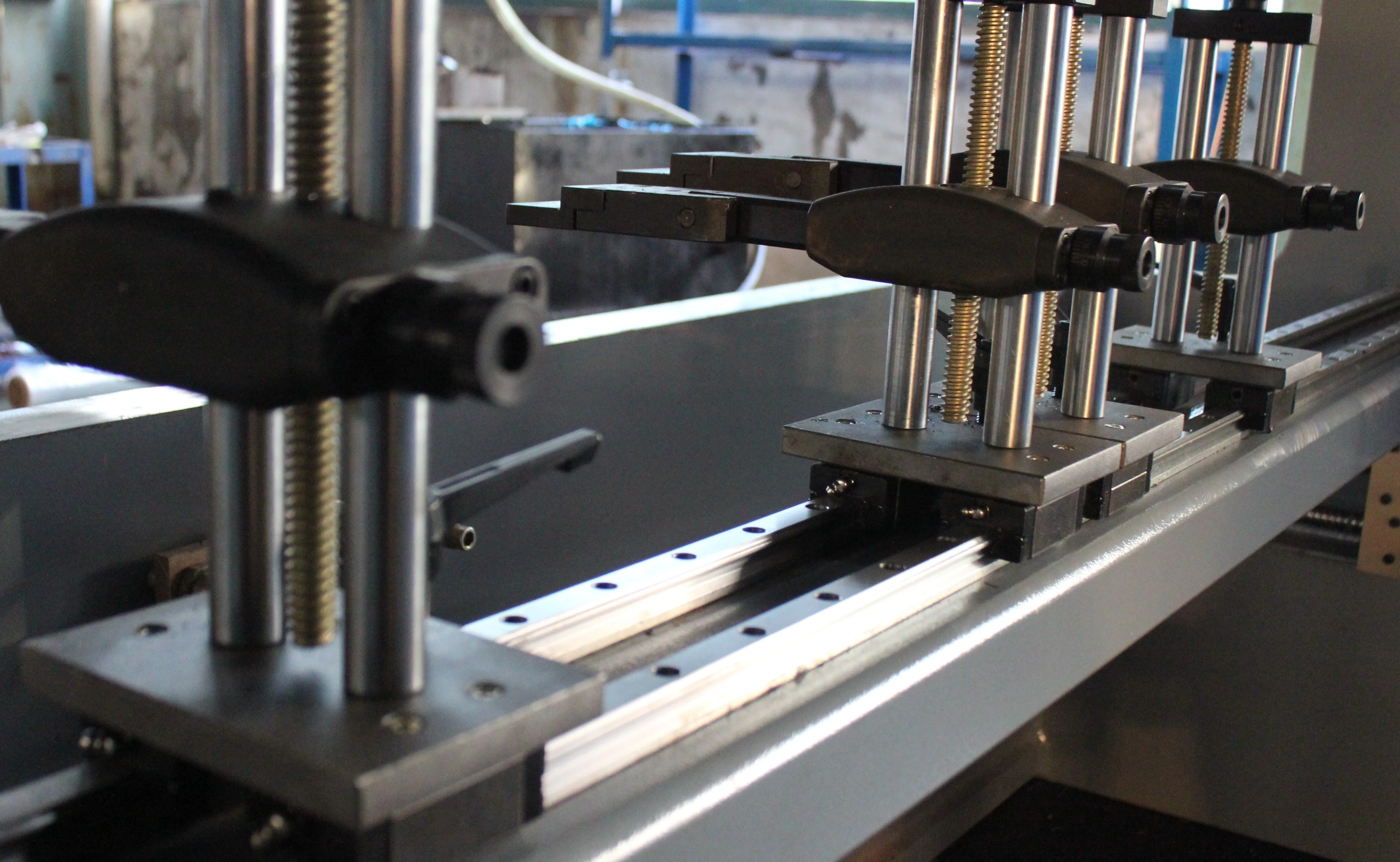

The stopper up and down by manual, move left and right on two linear guides.

Main configuration


Name
Producer
CNC controller
E21 Estun            China Brand
Main motor
Siemens              Germany brand
Electrical components
Schneider           France brand
Gear pump
Sunny                  USA brand
Seal ring
NOK                    Japan brand
Hydraulic system
Boschrexroth    Germany brand
Ball screw ,Linear guide
HIWIN                 Taiwan brand
Tubing connector
EMB                   Germany Brand
Variable frequency drive
Shihlin               Taiwan Brand

E21 NC controller

Backgauge and block control

Control for general AC motors, frequency inverter Intelligent positioning

Stock counter Holding/decompression time setting

Program memory of up to 40 programs Up to 25 steps per program

One side positioning Retract function

One key backup/restore of parameters mm/inch

Chinese /English

The standard accessories are in the below:

  • Anchor bolt
  • Hex nut
  • Seal ring
  • Gasket
  • Grease gun
  • Allen wrench
  • Foot switch
  • Front support arms
  • Electrical box key, control panel key
  • Operation manuals
