KINGBALL automatic v grooving machine ,metal grooving machine, metal slotting machine

  • 1 - 1 Sets
    $25,000.00
  • >=2 Sets
    $23,000.00
Model Number:
KCV-2000x5000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$23,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KINGBALL
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
2 years
Core Components:
Motor
Voltage:
220V/380V/415V
Dimension(L*W*H):
7600x3100x1900mm
Weight:
10000kg
Certification:
CE
Warranty:
2 years
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Competitive Price
Power (kW):
6.5
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia
CNC system:
Mitsubishi
Pneumatic solenoid valve:
AirTAC
Servo motor:
Mitsubishi
Star reducer:
AMDSK
PLC:
Mitsubishi ,Japan
Single / bipolar air switch:
Schneider
Proximity switch:
OMRON
Linear Guide:
HIWIN
Angular contact ball bearings:
NSK
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic or wooden case for KINGBALL automatic v grooving machine ,metal grooving machine, metal slotting machine
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated

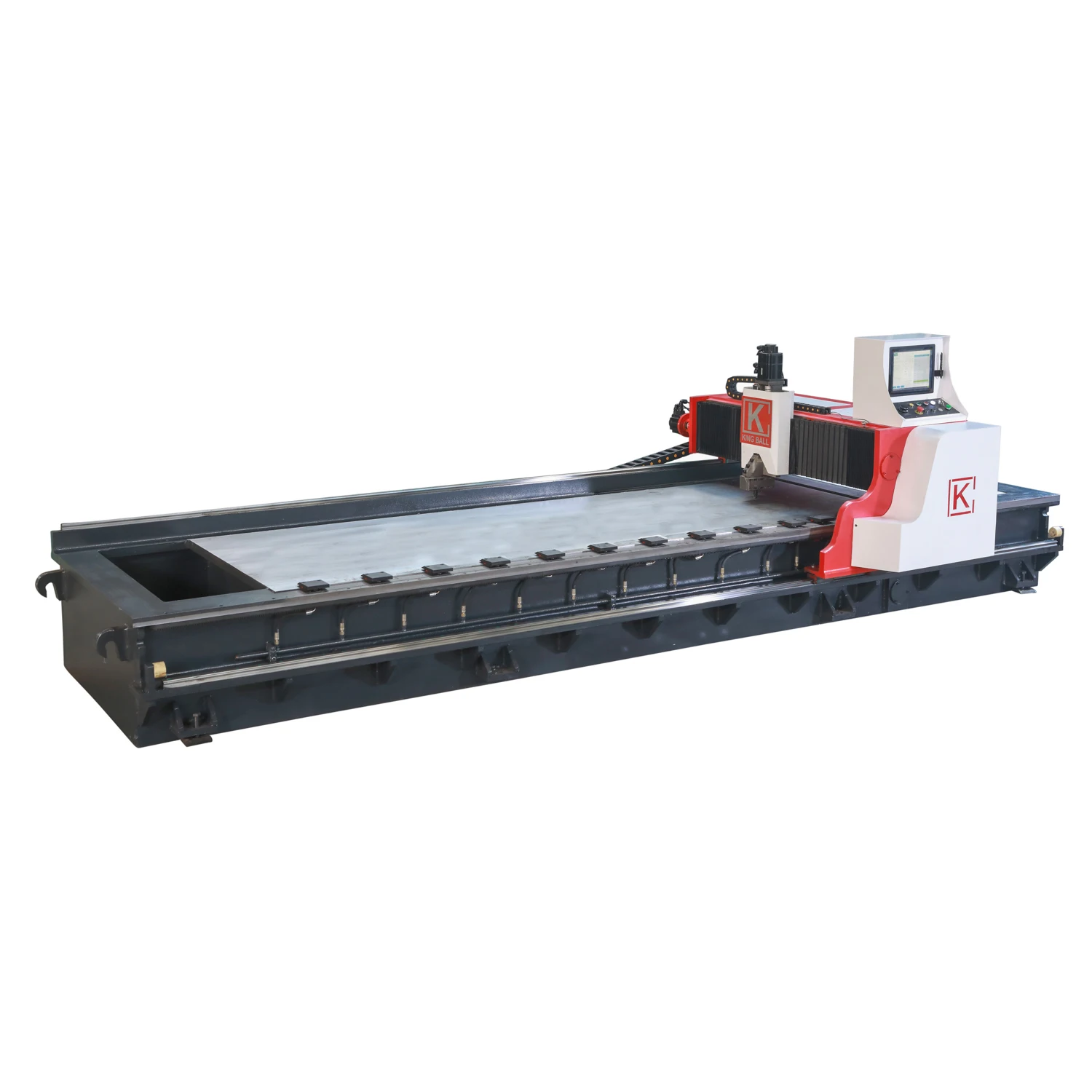

Gantry type CNC Slotting Machine KCV-2000/5000


Function intruction

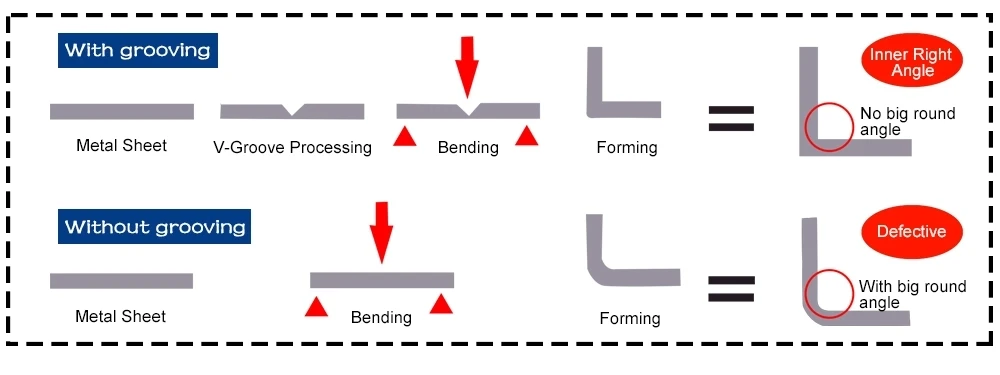

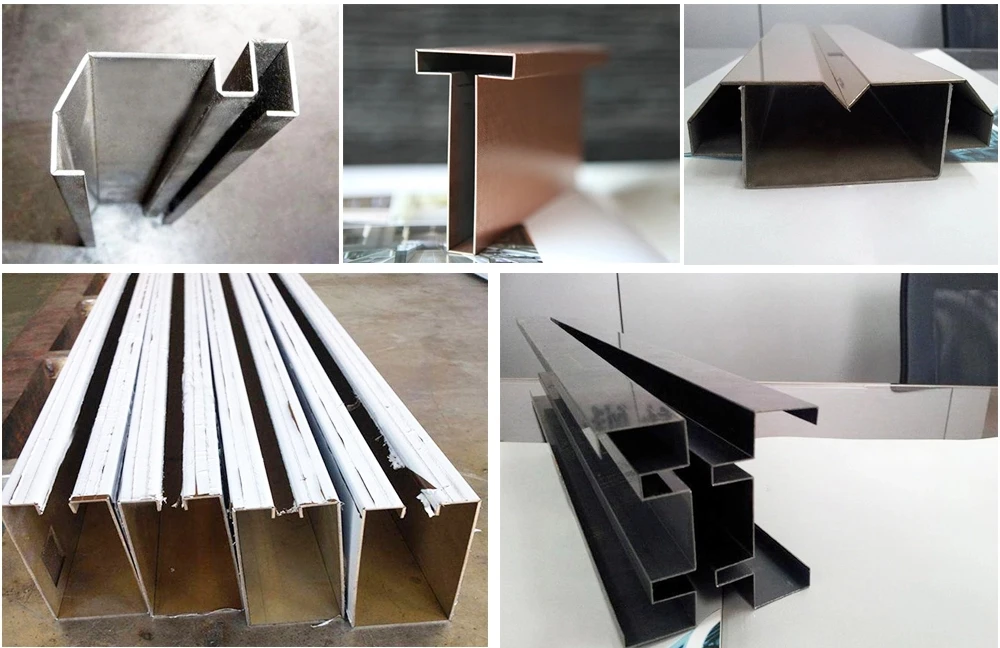

This equipment is full CNC gantry slotting machine, it adopts advanced CNC system with novel design.It has the characteristics of high processing accuracy, simple operation, no noise and no vibration. This machine tool is used to process V-grooves, U-grooves and other irregular grooves on sheet metal parts, and is especially suitable for V-groove processing before sheet metal parts are bent,Including stainless steel plates,aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards, acrylic plates and other special plates.
Performance and characteristics
1) LM type CNC gantry type metal sheet slotting machine is an upgraded product researched and developed by our company's researchers based on South Korea's gantry type metal sheet slotting machine. This machine has all the performance of traditional gantry models, which fully solves a series of problems encountered by customers in the actual operation process.
2) This equipment is a 4-axis full-servo design, which has made an essential breakthrough on the basis of all domestic and foreign gantry slotting products.
3)The equipment is welded with steel plates, which has strong shock resistance, eliminates internal stress through vibration aging, has good stability, and is rusted by sandblasting on the machine, and sprayed with anti-rust paint.The whole machine is processed on a CNC floor-type boring and milling machine, which ensures the parallelism and perpendicularity of each mounting surface.
4)The equipment adopts a platform-type double guide rail structure, the beam runs more smoothly, and the blade holder processes the plate by moving left and right, back and forth, which can ensure the accuracy of each part of the groove depth.

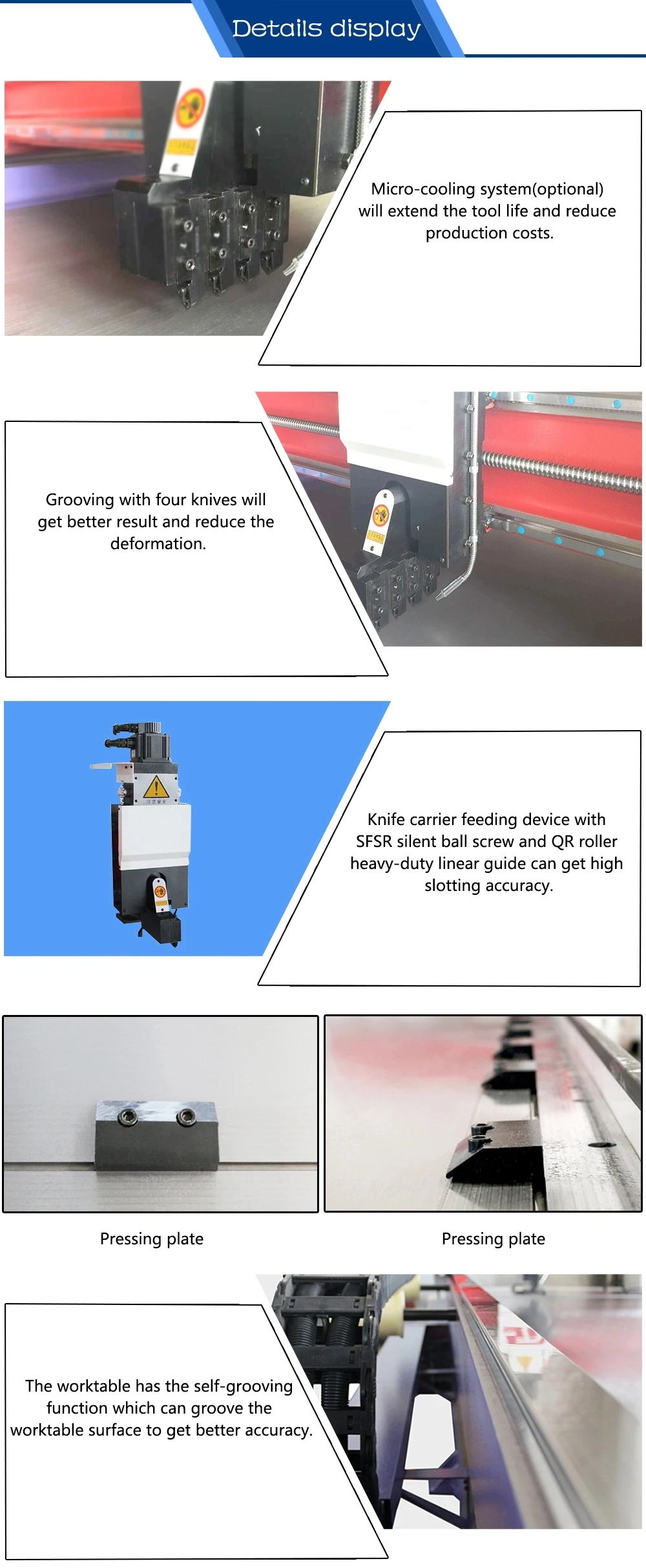

5)The equipment adopts the processing technology of three forming knives, which greatly reduces the iron scraps generated during processing, and greatly improves the accuracy of processing compared with the traditional five knives. Because the bottom of the groove processed by the five knives may produce multiple bottom lines.

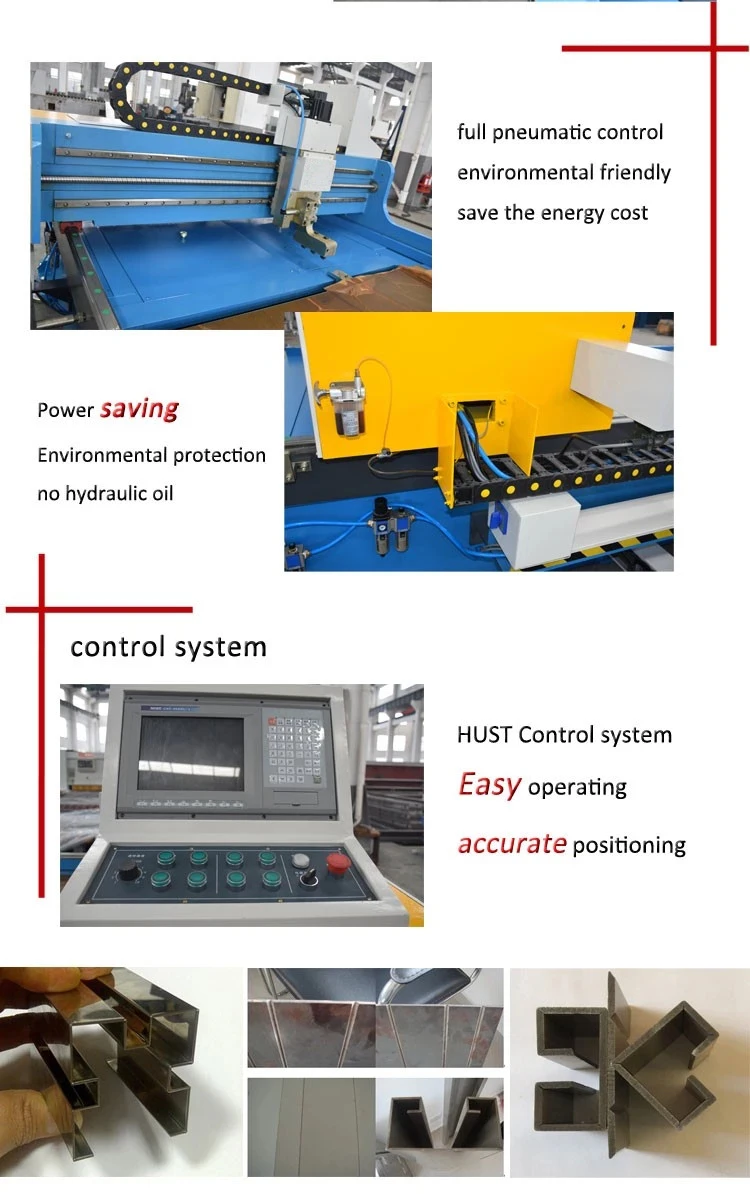

6)The equipment adopts full pneumatic clamping and pressing, and the work is fast, so that the processed product has no clamping marks, creasing marks, and the entire process is followed by cooling spray.
7) The equipment uses high-speed and precise gear racks, ball screws with large pitches, and high-precision, linear guides.The main shaft system is driven by a high torque servo motor and an imported star reducer. Makes the tool holder more stable and fast when processing the workpiece. The gantry of this equipment uses 5 mute slides.
8) The equipment workbench uses a high-strength 45 # plate as the base surface, so that the workbench is not easily worn when processing the workpiece.This equipment has a self-planing function.
9)The equipment adopts CNC numerical control. The operator is easy to learn and understand, and the positioning is accurate.
10)the equipment clamping and pressing are all pneumatically controlled, making the machine more energy-saving and environmentally friendly.

The overall shape of the equipment is simple, generous and nice. It adopts the frame structure setting, which is in line with the operating habits of various technical personnel, so that the operators can fully meet the production and technical requirements during work.

Main technical parameters of the equipment
No.
Item
Parameter
Unit
1
Slotted sheet max width
2000
mm
2
Slotted sheet max length
5000
mm
3
Slotted sheet max thickness (stainless steel)
6
mm
4
Slotted sheet min thickness
0.5
mm
5
V-groove min distance from side
8-15 (depend on plate thickness)
mm
6
X-axis cutting max speed
60
m/min
7
X-axis return max speed
80
m/min
8
Y1 axis max distance
1250
mm
9
Y1 axis resolution
0.01
mm
10
Y1 axis positioning accuracy
±0.03
mm
11
Duplicate positioning accuracy
±0.02
mm
12
Z-axis resolution
0.01
mm
13
Duplicate positioning accuracy
±0.02
mm
14
Worktable adjustment
Self-slotting function
mm
15
Feeding method
Sheets do not move, knife holder moves
16
Number of installed knives
4 alloy knives
17
X axis motor power
5.5
KW
18
Y1.Y2.Z axis motor power
1
KW
19
Machine dimensions(LxWxH)
7600X3100X1900
mm
Remark:X axis→ Controlling Beam Movement
Y1 axis→Control the blade holder forward and backward movement
Y2 axis→Control the mobile clamp forward and backward movement Z axis→Control blade holder up and down movement
Equipment main configuration
No.1
Item
brand
1
CNC system
Mitsubishi
2
Pneumatic solenoid valve
AirTAC
3
Pneumatic two-piece
AirTAC
4
servo driver
Mitsubishi
5
Servo motor
Mitsubishi
6
Star reducer
AMDSK
7
PLC
Mitsubishi ,Japan
8
Single / bipolar air switch
Schneider
9
AC contactor, thermal relay
Schneider
10
Circuit breaker, button
Schneider
11
Miniature relay
Schneider
12
Machine tool flexible power cable
igus
13
Proximity switch
OMRON
14
Alloy knife
TaeguTec
15
Linear Guide
HIWIN
16
High-precision ball screw
HIWIN
17
Precision gear rack
Fengmao
18
Angular contact ball bearings
NSK
19
Double diaphragm coupling
KS
Structure Introduction
LM gantry series CNC metal slotting machine adopts frame structure, the whole machine has compact structure, reliable performance and convenient operation,And the processing control uses all hydraulic devices, customers will greatly reduce the use cost and maintenance cost. Its structure is mainly composed of four groups of servo motor drive system, hydraulic clamp system and main body steel frame.
1) Beam axis system The beam axis system of this equipment is composed of main motor 5.5KW spindle servo motor, 1: 7 star reducer timing belt, synchronous wheel, high-precision rack and pinion, linear guide and other components.
Its function is that the servo motor drives the precision gear through the star reducer to drive the tool holder to move linearly
on the linear guide to provide the cutting power.

2) Y1, Y2 axis system
The Y1, Y2 axis system of this equipment is composed of 1KW AC servo motor, timing belt, timing wheel, ball screw, mobile clamp and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with power to achieve accurate positioning of the V-groove.
3) Z axis system
The Z-axis system of this equipment is composed of 1KW AC servo motor, precision coupling, ball screw, tool holder and other parts. Its function is that the motor drives the tool post for linear motion by driving the ball screw to provide precise
positioning of the tool post mechanism.
4) Electrical control system
The electrical control system of this equipment is composed of HUST special slotting machine system, driver, electric control element, electrical board and other accessories. The electrical board is installed on the inside of the machine for easy maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.
