KCN-25040 CNC SHEET METAL FOLDING MACHINE ,EASY BENDER

  • 1 - 1 Sets
    $21,000.00
  • >=2 Sets
    $20,000.00
Nominal Pressure (kN):
2500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Slider Stroke (mm):
250 mm
Automatic Level:
Fully Automatic
Nominal Pressure (kN):
2500 kN
Throat Depth (mm):
400 mm
Machine Type:
torsion bar
Length of Working Table (mm):
4000 mm
Width of Working Table (mm):
4000 mm
Dimension:
4500x2150x3100mm
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
King Ball
Material / Metal Processed:
Brass / Copper, STAINLESS STEEL, Carbon Steel, aluminum
Automation:
Automatic
Extra Services:
Machining
Certification:
ISO 9001:2000
Year:
2020
Weight (KG):
20200
Motor Power (kw):
18.5 kw
Key Selling Points:
Competitive price
Warranty:
2 years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, malaysia, Australia, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, uzbekistan
Showroom Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, uzbekistan, Tajikistan, malaysia, Australia
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Bearing, MOTOR, pump, GEAR, PLC, PRESSURE VESSEL, engine, Gearbox
CNC controller:
E21 Estun China Brand
Main motor:
Siemens Germany brand
Electrical components:
Schneider France brand
Gear pump:
Sunny USA brand
Seal ring:
NOK Japan brand
Hydraulic system:
Boschrexroth Germany brand
Ball screw ,Linear guide:
HIWIN Taiwan brand
Tubing connector:
EMB Germany Brand
Variable frequency drive:
Shihlin Taiwan Brand
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
General package for KCN-25040 CNC SHEET METAL FOLDING MACHINE ,EASY BENDER, PRESS BRAKE
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description

Torsion bar Synchronous NC Press Brake
Model: KCN-25040

2 Axes CNC Control(X, Y)
X: Backgauge front and back; Y: Ram stroke
W: Worktable crowning (optional)
Main functions and features
1. Overall welded and processed structure.
2. High mechanical strength and strong rigidity.
3. Ram stroke hydraulic approaching downward, stable and reliable.
4. E21 can control the movement of ram stroke and backgauge, achieving efficient and highly precise positioning.
5. Wedge compensation on top punch clamping.
6. Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
7. 2 Sliding front sheet support arms mounted onto T slot of the bed.
8. Solid one block four face multi V die.
9. Approved stable and reliable hydraulics.
10. Stop fingers with milscale for plate bending machine.
Technical Parameters
No.
Item
Parameter
unit
1
Nominal pressure
2500
KN
2
Table length
4000
mm
3
Max.Slider stroke
250
mm
4
Max.Shut height
530
mm
5
Between columns
3100
mm
6
Throat depth
400
mm
7
Main motor power
18.5
KW
8
Down Speed
90
mm/s
9
Pressing Speed
8
mm/s
10
Return Speed
90
mm/s
11
Control axis
X+Y
/
12
X axis Stroke
500
mm
13
Backgauge Stoppers
2
/
14
Overall dimension (LxWxH)
4500x2150x3100
mm
15
Machine weight
20200
kg
Detailed Pictures
Back gauge with ball screw and round guide.
Multifunction adjustment of the tightening wheel.
Germany Boschrexroth hydraulic system.
Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.
European style quick release clamping.
The guideway use the brass, wear-resisting,long service life.
Standard support arm.
The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization.
The connector use wear - resistant brass.
The stopper up and down by manual, move left and right on two linear guides.
Limit switch.
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
Main Configuration
name
producer
CNC controller
E21 Estun China Brand
Main motor
Siemens Germany brand
Electrical components
Schneider France brand
Gear pump
Sunny USA brand
Seal ring
NOK Japan brand
Hydraulic system
Boschrexroth Germany brand
Ball screw ,Linear guide
HIWIN Taiwan brand
Tubing connector
EMB Germany Brand
Variable frequency drive
Shihlin Taiwan Brand
E21 controller
* Backgauge and block control
* Control for general AC motors, frequency inverter Intelligent positioning
* Stock counter Holding/decompression time setting
* Program memory of up to 40 programs Up to 25 steps per program
* One side positioning Retract function
* One key backup/restore of parameters mm/inch
* Chinese /English

The standard accessories are in the below:

1. Anchor bolt
2. Hex nut
3. Seal ring
4. Gasket
5. Grease gun
6. Allen wrench
7. Foot switch
8. Front support arms
9. Electrical box key, control panel key
10. Operation manuals
Optional Configuration

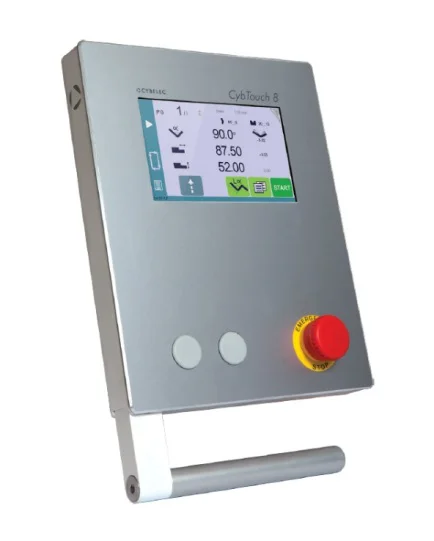

CybTouch 8P Cybelec Switzerland brand CNC Controller
1. 7” color graphic CRT touch screen.
2.Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters,The back
gauge can be controlled in servo systems.

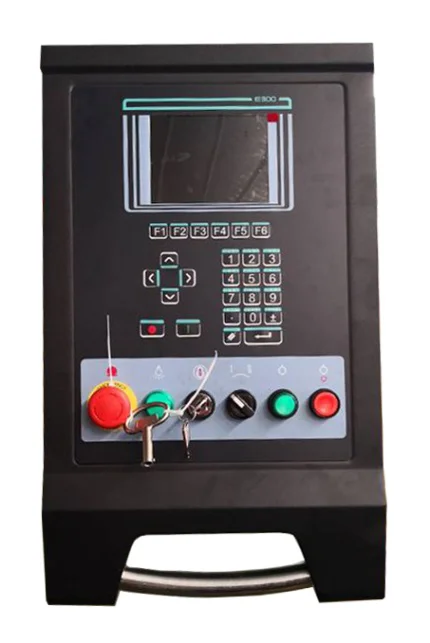

E300 ESTUN China brand CNC Controller
 1. 6 inch, 640 × 480 dot matrix, 18 full color display screen.
2.Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters,The back
gauge can be controlled in servo systems.
.

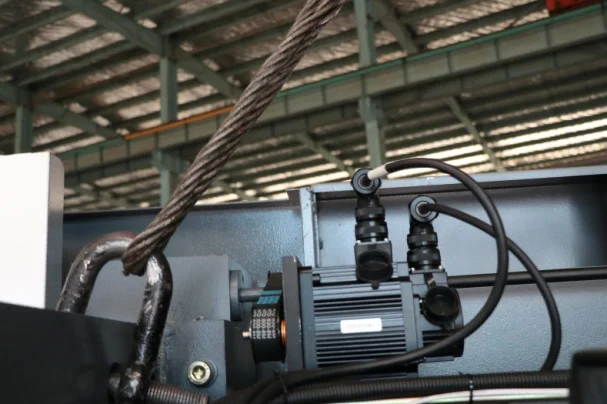

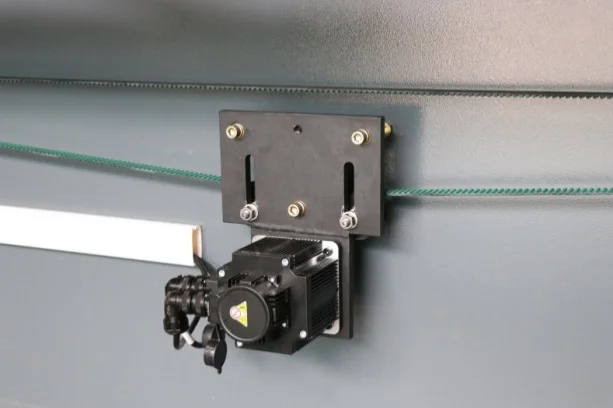

X-axes servo motors
X-axes servo motors for CybTouch 8P and E300 CNC controller.
Y-axes servo motors
Y-axes servo motors for CybTouch 8P and E300 CNC controller.

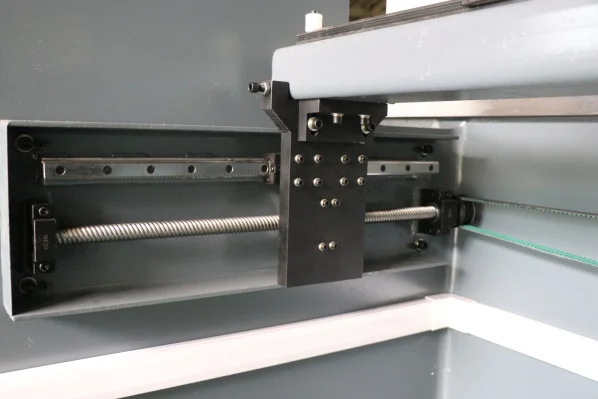

Backgauge with ball screw and linear guide
High precision, fast speed and low noise.

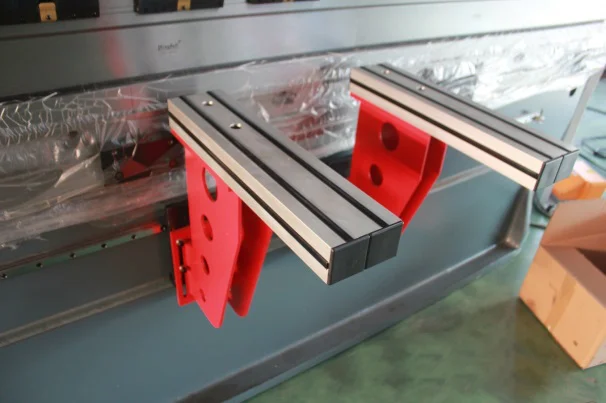

 Front support arm
Double sliding front support arm installed on the linear guide, movable easy.

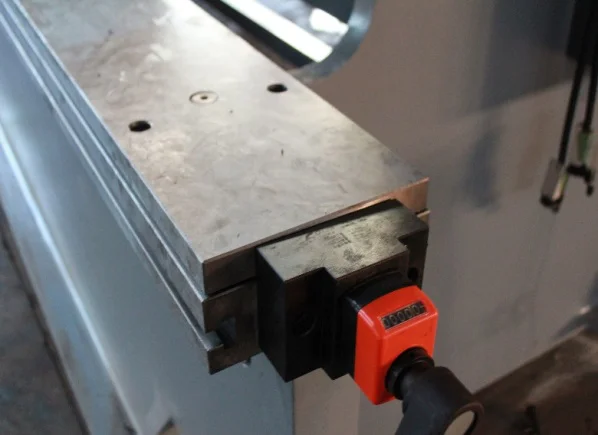

Table crowning system
Manual table crowning.

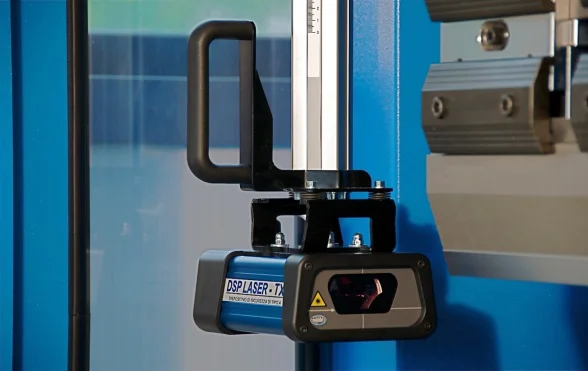

Laser safety protection
Italy brand Nuoguard DSP laser safety protection .
Safety light curtain
China brand SDKELI safety light curtain, installed on the back of the machine, if someone enters the machine, the machine ispowered off.

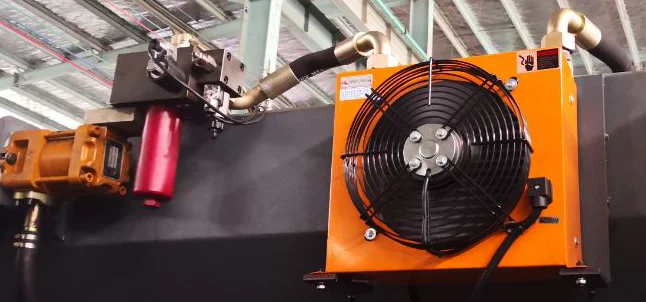

oil cooler
Lower temperature of oil.

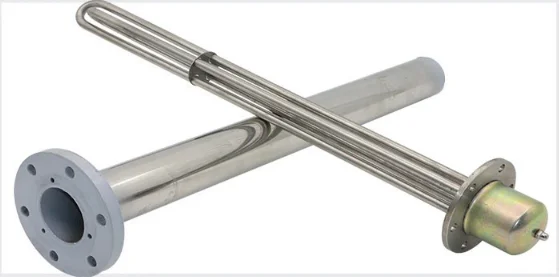

Oil heater
Increase temperature of oil.

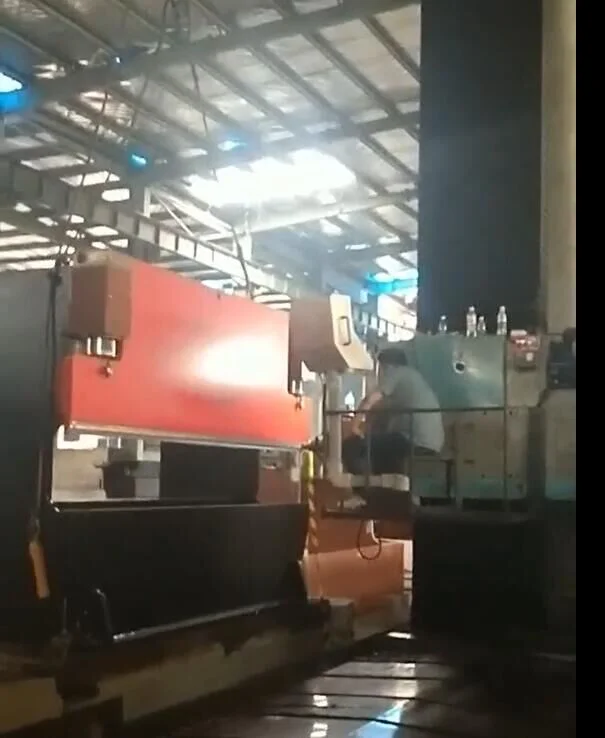

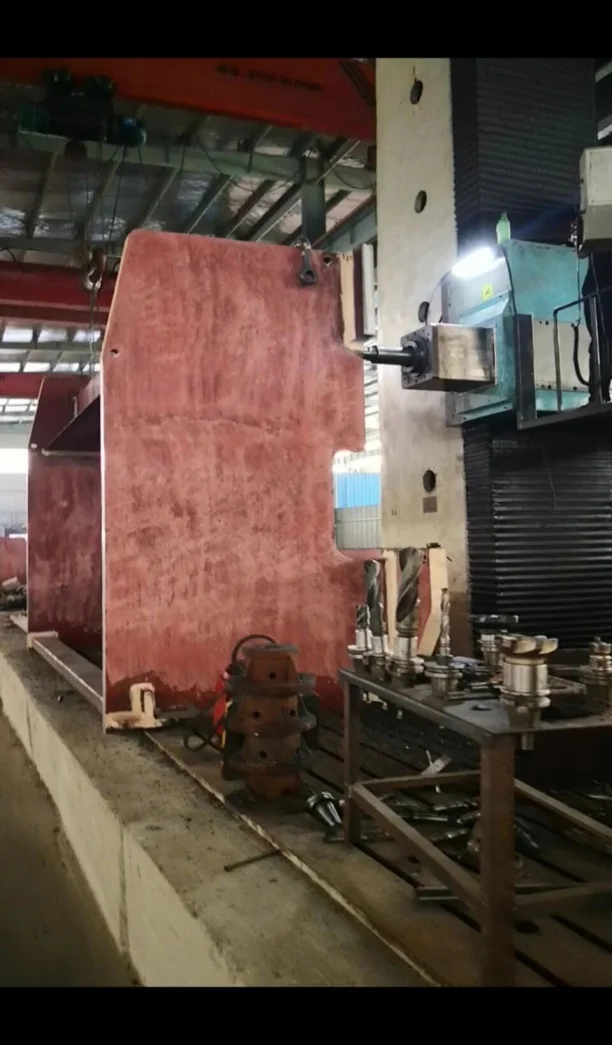

machine produce process
After assembled , we will process ram again.

After welding ,our machine is whole processing.
That will ensure the machine precision

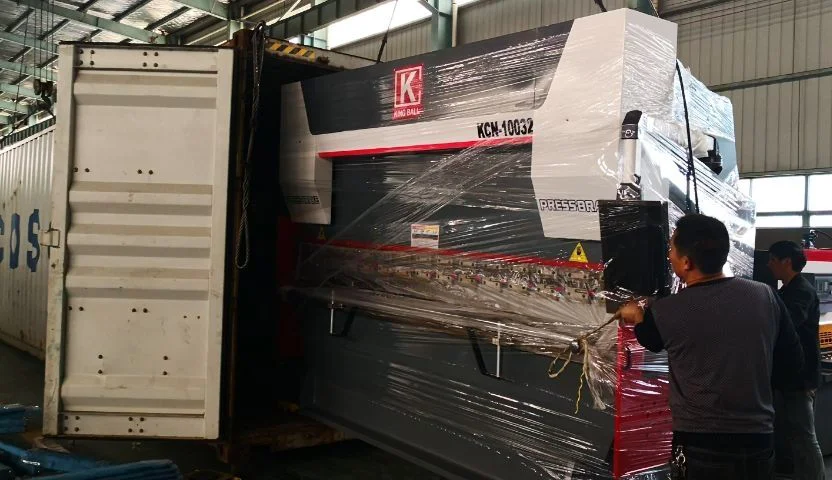

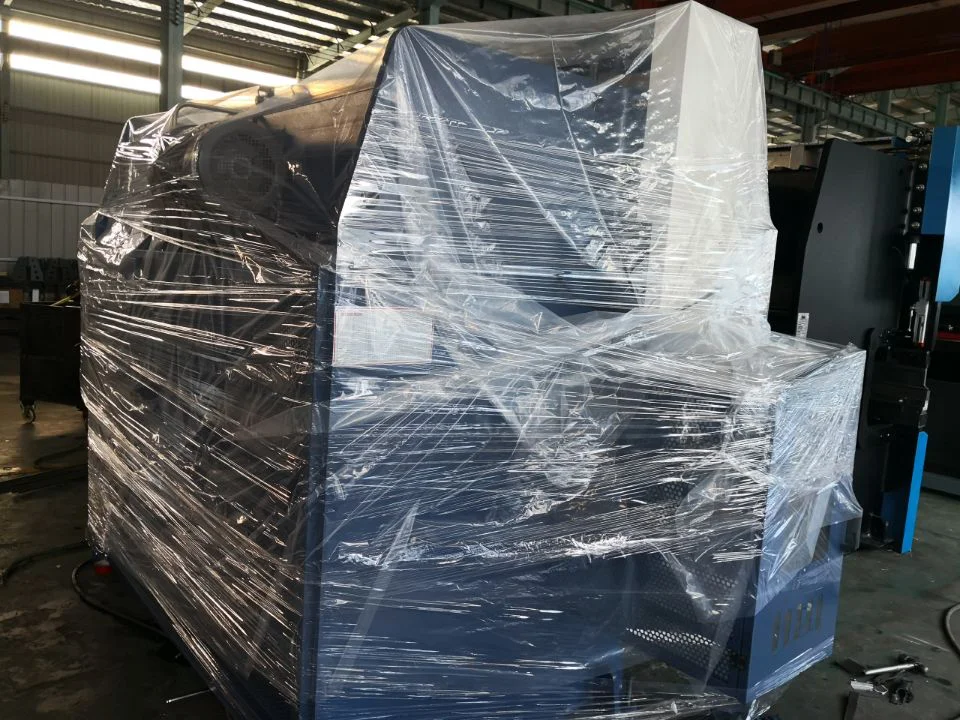

Product packaging
